LONG COMMUNICATIONS

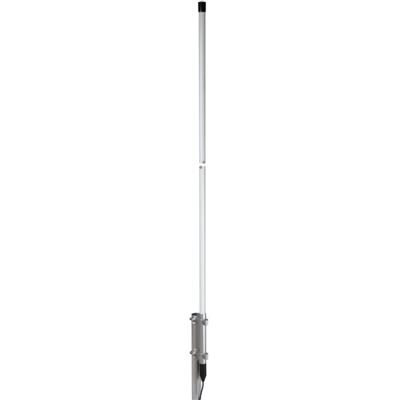

HIGH GAIN UHF AERIAL 3DB COLINEAR

<p>
	&nbsp;&nbsp; Type: Colinear<br />
	- Frequency range @ SWR &le;1.5:&nbsp; 430-470 MHZ<br />
	- Impedance: 50&Omega;<br />
	- Radiation (H-plane): 360&deg; omnidirectional<br />
	- Radiation (E-plane): beamwidth @ -3 dB = 40&deg;<br />
	- Radiation angle: 0&deg;<br />
	- Polarization: linear vertical<br />
	- Gain: 3 dBd - 5.15 dBi<br />
	- Grounding protection: All metal part are DC-grounded, the inner&nbsp;&nbsp;&nbsp;&nbsp; conductor shows a DC-short<br />
	- Connector: N-female with rubber protection cap.</p>
<p>
	- Materials: White fiberglass radome &Oslash; 28.6mm, anodized 6063-&nbsp;&nbsp; t5 aluminium, brass, stainless steel, copper, EPDM rubber<br />
	- Wind load / resistance: 53 N @ 150 Km/h / 150 Km/h<br />
	- Wind surface: 0.044 m&sup2;<br />
	- Height (approx.): 1380 mm<br />
	- Weight (approx.): 1200 gr<br />
	- Operating temperature: -40&deg;C to +80&deg;C<br />
	- Mounting mast: &Oslash; 35-54 mm</p>
<p>
	PRICE &euro;179</p>
<p>
	&nbsp;</p>
<p>
	&nbsp;</p>

   Type: Colinear
- Frequency range @ SWR ≤1.5:  430-470 MHZ
- Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth @ -3 dB = 40°
- Radiation angle: 0°
- Polarization: linear vertical
- Gain: 3 dBd - 5.15 dBi
- Grounding protection: All metal part are DC-grounded, the inner     conductor shows a DC-short
- Connector: N-female with rubber protection cap.

- Materials: White fiberglass radome Ø 28.6mm, anodized 6063-   t5 aluminium, brass, stainless steel, copper, EPDM rubber
- Wind load / resistance: 53 N @ 150 Km/h / 150 Km/h
- Wind surface: 0.044 m²
- Height (approx.): 1380 mm
- Weight (approx.): 1200 gr
- Operating temperature: -40°C to +80°C
- Mounting mast: Ø 35-54 mm

PRICE €179
