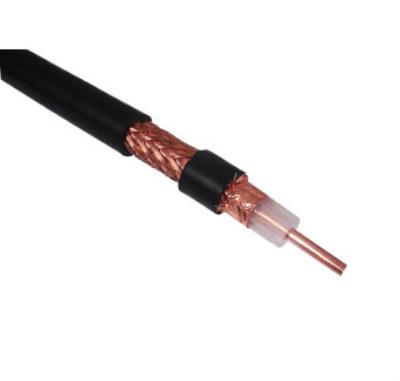

LONGCOM W103 SUPER LOW LOSS CABLE

<p> Longcom Westflex 103 Formula zero&nbsp; has approximately half the loss of Rg213.</p> <p> Probably the best value for money for top spec cable.</p> <p> It has a semi air dielectric for low loss.</p> <p> Doubled screened&nbsp; with one screen of solid copper foil.</p> <p> Outer diameter is 10.3mm</p> <p> Inner conducter diameter is 2.7mm</p> <p> Velocity ratio 0.85mm</p> <p> Minimum bending radius 55mm</p> <p> &nbsp;Loss figures per 100 metres</p> <ul> <li> 10 MHz: 0.9dB</li> <li> 30 MHz: 1.7dB</li> <li> 50 MHz: 2.0 dB</li> <li> 100 MHz: 3.2dB</li> <li> 144 MHz: 4.5dB</li> <li> 200 MHz: 5.4dB</li> <li> 300 MHz: 6.2dB</li> <li> 432 MHz: 7.5dB</li> <li> 1000MHz: 13.0dB</li> <li> <span id="DetailsView1_description" style="font-size:10pt;">Sold in muliple length of 5 metres</span></li> </ul> <p> &nbsp;</p> <ul> <li> <strong><span id="DetailsView1_description" style="font-size:10pt;">PRICE PER METRE&nbsp; &euro;2.50</span></strong></li> <li> <strong><span style="font-size:10pt;">PRICE 100M ROLLS &euro;245</span></strong></li> </ul> <p> <strong><span style="font-size:10pt;">&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; </span></strong></p> <div style="overflow: hidden; color: rgb(0, 0, 0); background-color: rgb(255, 255, 255); text-align: left; text-decoration: none; border: medium none;"> <em>Also available Pl259 connections to suit this&nbsp; cable &euro;2.50 each and N TYPE&nbsp; or BNC to suit &euro;10 each.</em></div>

Longcom Westflex 103 Formula zero  has approximately half the loss of Rg213.

Probably the best value for money for top spec cable.

It has a semi air dielectric for low loss.

Doubled screened  with one screen of solid copper foil.

Outer diameter is 10.3mm

Inner conducter diameter is 2.7mm

Velocity ratio 0.85mm

Minimum bending radius 55mm

 Loss figures per 100 metres

  • 10 MHz: 0.9dB
  • 30 MHz: 1.7dB
  • 50 MHz: 2.0 dB
  • 100 MHz: 3.2dB
  • 144 MHz: 4.5dB
  • 200 MHz: 5.4dB
  • 300 MHz: 6.2dB
  • 432 MHz: 7.5dB
  • 1000MHz: 13.0dB
  • Sold in muliple length of 5 metres



  • PRICE PER METRE  €2.50
  • PRICE 100M ROLLS €245



Also available Pl259 connections to suit this  cable €2.50 each and N TYPE  or BNC to suit €10 each.
