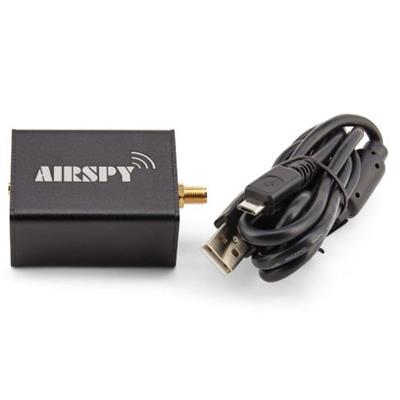

AIRSPY R2

<p> Airspy R2 sets a new level of performance in the reception of the VHF and UHF bands thanks to its low-IF architecture, high quality ADC and state of the art DSP.</p> <p> The coverage can be extended to the HF bands via the SpyVerter up-converter companion.</p> <p> The Airspy R2, like its predecessor is 100% compatible with all the existing software including the de facto scanning standard SDR#, but also a number of popular software defined radio applications such as SDR-Radio, HDSDR, GQRX and GNU Radio.</p> <p> <b>Typical Applications</b></p> <ul> <li> VHF/UHF/SHF Radio Monitoring</li> <li> Coherent Receiver Array</li> <li> Direction Finding</li> <li> Passive Radar</li> <li> ADS-B, ATC</li> <li> Radio Astronomy</li> <li> Satellite IF</li> <li> Telemetry Radio Receiver</li> <li> Wide Band Scanner</li> <li> Education</li> <li> Ham Radio, etc.</li> </ul> <h2> Supported platforms</h2> <ul> <li> Windows Vista, 7, 8, 8.1 and 10</li> <li> Linux</li> <li> *BSD</li> <li> OSX</li> </ul> <h2> Technical specifications</h2> <ul> <li> Continuous <strong>24 &ndash; 1700 MHz</strong> native RX range, <strong>down to DC</strong> with the SpyVerter option</li> <li> <strong>3.5 dB NF</strong> between 42 and 1002 MHz</li> <li> Maximum RF input of +10 dBm</li> <li> Tracking RF filters</li> <li> <strong>35dBm IIP3</strong> RF front end</li> <li> 12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)</li> <li> <strong>10MSPS IQ</strong> output</li> <li> Experimental 2.5MSPS IQ output for low power devices (Raspberry Pi, Odroid, etc.) &ndash; Not recommended for high performance applications.</li> <li> Up to <strong>80 MSPS</strong> when using custom firmware</li> <li> Cortex M4F @ up to 204MHz with Multi Core support (dual M0)</li> <li> <strong>0.5 ppm</strong> high precision, low phase noise clock</li> <li> 1 RTC clock (for packet time-stamping)</li> <li> External clock input (10 MHz to 100 MHz via MCX connector) &ndash; Ideal for phase coherent radios</li> <li> <strong>10 MHz panoramic spectrum</strong> view with up to 9MHz alias/image free</li> <li> IQ or Real, 16bit fixed or 32bit float output streams</li> <li> <strong>No IQ imbalance, DC offset or 1/F noise</strong> at the center of the spectrum that plagues all the other SDRs</li> <li> Extension ports: 16 x SGPIO</li> <li> 1 x RF Input (SMA connector, up to 30kV ESD protection)</li> <li> 1 x RF Output (Loopthrough, U-FL, 15kV ESD protection)</li> <li> 2 x High Speed ADC inputs (up to 80 MSPS, U-FL, DC coupled, 15kV ESD protection)</li> <li> 4.5v software switched Bias-Tee to power LNA&rsquo;s and up/down-converters</li> <li> 8 x programmable high speed gpio&rsquo;s up to 100MHz</li> <li> 3 x programmable synchronized clock outputs up to 160MHz</li> <li> 1 x core CPU clock output</li> <li> 1 x reset pin</li> <li> 2 x regulated +5.0 and +3.3v pins</li> <li> 1 x JTAG header</li> <li> <strong>No drivers required!</strong> 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10</li> <li> Operating temperature: -10&deg;C to 40&deg;C</li> </ul> <p> &nbsp;</p> <p> &nbsp;</p> <p> &nbsp;</p> <h2> Minimum hardware requirements</h2> <ul> <li> 3rd gen Intel i3 2.4 GHz CPU or equivalent</li> <li> 2GB of RAM (to run your own OS, airspy barely needs 1MB of memory)</li> <li> High speed USB 2.0 controller</li> </ul> <h2> Supported Software</h2> <ul> <li> The gold standard SDR#</li> <li> The ultimate Narrowband Signals Analysis and Decoding Suite Kyrpto500</li> <li> The ultimate Wideband Signals Analysis and Decoding Suite Kyrpto1000</li> <li> The other excellent SDR suite, SDR- Console</li> <li> The Suiss-army SDR knife for Linux and Mac, GQRX</li> </ul> <p> &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; PRICE &nbsp; &euro;235</p> <p> &nbsp;</p> <p> &nbsp;</p>

Airspy R2 sets a new level of performance in the reception of the VHF and UHF bands thanks to its low-IF architecture, high quality ADC and state of the art DSP.

The coverage can be extended to the HF bands via the SpyVerter up-converter companion.

The Airspy R2, like its predecessor is 100% compatible with all the existing software including the de facto scanning standard SDR#, but also a number of popular software defined radio applications such as SDR-Radio, HDSDR, GQRX and GNU Radio.

Typical Applications

  • VHF/UHF/SHF Radio Monitoring
  • Coherent Receiver Array
  • Direction Finding
  • Passive Radar
  • ADS-B, ATC
  • Radio Astronomy
  • Satellite IF
  • Telemetry Radio Receiver
  • Wide Band Scanner
  • Education
  • Ham Radio, etc.

Supported platforms

  • Windows Vista, 7, 8, 8.1 and 10
  • Linux
  • *BSD
  • OSX

Technical specifications

  • Continuous 24 – 1700 MHz native RX range, down to DC with the SpyVerter option
  • 3.5 dB NF between 42 and 1002 MHz
  • Maximum RF input of +10 dBm
  • Tracking RF filters
  • 35dBm IIP3 RF front end
  • 12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)
  • 10MSPS IQ output
  • Experimental 2.5MSPS IQ output for low power devices (Raspberry Pi, Odroid, etc.) – Not recommended for high performance applications.
  • Up to 80 MSPS when using custom firmware
  • Cortex M4F @ up to 204MHz with Multi Core support (dual M0)
  • 0.5 ppm high precision, low phase noise clock
  • 1 RTC clock (for packet time-stamping)
  • External clock input (10 MHz to 100 MHz via MCX connector) – Ideal for phase coherent radios
  • 10 MHz panoramic spectrum view with up to 9MHz alias/image free
  • IQ or Real, 16bit fixed or 32bit float output streams
  • No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
  • Extension ports: 16 x SGPIO
  • 1 x RF Input (SMA connector, up to 30kV ESD protection)
  • 1 x RF Output (Loopthrough, U-FL, 15kV ESD protection)
  • 2 x High Speed ADC inputs (up to 80 MSPS, U-FL, DC coupled, 15kV ESD protection)
  • 4.5v software switched Bias-Tee to power LNA’s and up/down-converters
  • 8 x programmable high speed gpio’s up to 100MHz
  • 3 x programmable synchronized clock outputs up to 160MHz
  • 1 x core CPU clock output
  • 1 x reset pin
  • 2 x regulated +5.0 and +3.3v pins
  • 1 x JTAG header
  • No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10
  • Operating temperature: -10°C to 40°C







Minimum hardware requirements

  • 3rd gen Intel i3 2.4 GHz CPU or equivalent
  • 2GB of RAM (to run your own OS, airspy barely needs 1MB of memory)
  • High speed USB 2.0 controller

Supported Software

  • The gold standard SDR#
  • The ultimate Narrowband Signals Analysis and Decoding Suite Kyrpto500
  • The ultimate Wideband Signals Analysis and Decoding Suite Kyrpto1000
  • The other excellent SDR suite, SDR- Console
  • The Suiss-army SDR knife for Linux and Mac, GQRX

          PRICE   €235
