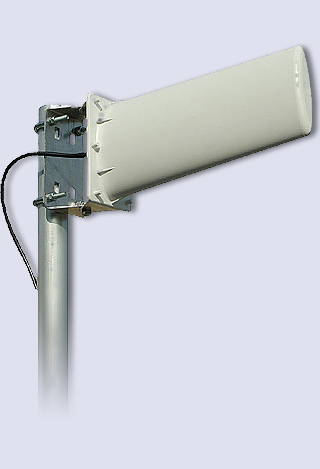

2.4 GHZ YAGI BROADBAND

<table width="100%" cellspacing="0" cellpadding="0" border="0">
    <tbody>
        <tr>
            <td width="100%" valign="top" align="left" colspan="2"><font size="1"><strong>Electrical Data</strong></font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Type: Log periodic dipole array </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Frequency range: 1700-2500 MHz for DCS,PCS,DECT,UMTS and WLAN systems </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Impedance: 50&Omega; </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Radiation (H-plane): beamwidth @ -3 dB = 58&deg; frequency independent </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Radiation (E-plane): beamwidth @ -3 dB = 46&deg; frequency independent </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Radiation angle: 0&deg; </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Front to back ratio: &ge; 24 dB </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Polarization: linear vertical </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Gain: 9 dBd - 11.1 dBi </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">SWR in bandwidth: &le; 2 </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Max. power (CW) @ 30&deg;C: 50 Watts </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Connector: SMA-female bulchead</font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="center"><font size="1">&nbsp;</font></td>
            <td width="95%" valign="top"><font size="1"><strong>&nbsp;</strong></font></td>
        </tr>
        <tr>
            <td width="100%" valign="top" align="left" colspan="2"><font size="1"><strong>Mechanical Data</strong></font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Materials: Aluminium, Brass, Stainless Steel </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Radome material: white ABS UV stabilized </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Wind load / resistance: 61 N @ 150 Km/h / 180 Km/h </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Wind surface: 0.04 m&sup2; </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Dimensions (approx.): 345 x 135 x 73 mm </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Turning radius: 310 mm </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Weight (approx.): 400 gr </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top"><font size="1">Operating temperature: -40&deg; C to +80&deg; C </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="1">-</font></td>
            <td width="95%" valign="top">
            <p><font size="1">Mounting mast: <br />
            &nbsp;clamp: &Oslash; 25-70 mm <br />
            &nbsp;mast: &Oslash; 25-42 mm with U-bolt (optional) <br />
            &nbsp;wall with mounting screws (not included) </font></p>
            <p><strong><font size="1">PRICE &euro;<font size="1">50</font></font></strong></p>
            </td>
        </tr>
    </tbody>
</table>

Electrical Data
- Type: Log periodic dipole array
- Frequency range: 1700-2500 MHz for DCS,PCS,DECT,UMTS and WLAN systems
- Impedance: 50Ω
- Radiation (H-plane): beamwidth @ -3 dB = 58° frequency independent
- Radiation (E-plane): beamwidth @ -3 dB = 46° frequency independent
- Radiation angle: 0°
- Front to back ratio: ≥ 24 dB
- Polarization: linear vertical
- Gain: 9 dBd - 11.1 dBi
- SWR in bandwidth: ≤ 2
- Max. power (CW) @ 30°C: 50 Watts
- Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
- Connector: SMA-female bulchead

Mechanical Data
- Materials: Aluminium, Brass, Stainless Steel
- Radome material: white ABS UV stabilized
- Wind load / resistance: 61 N @ 150 Km/h / 180 Km/h
- Wind surface: 0.04 m²
- Dimensions (approx.): 345 x 135 x 73 mm
- Turning radius: 310 mm
- Weight (approx.): 400 gr
- Operating temperature: -40° C to +80° C
-

Mounting mast:
 clamp: Ø 25-70 mm
 mast: Ø 25-42 mm with U-bolt (optional)
 wall with mounting screws (not included)

PRICE €50
