LONG COMMUNICATIONS

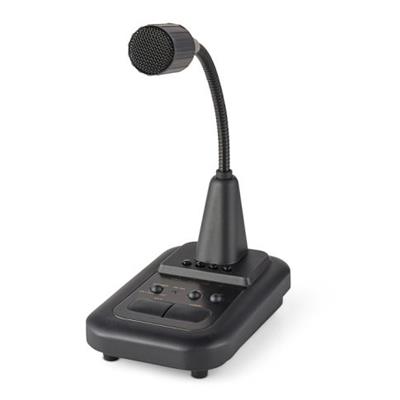

HIGH QUALITY BASE MIC

<p> Suitable for most modern radios with required lead</p> <p> <strong>Features: </strong></p> <ul> <li> High-sensitivity condensed microphone element - ensures better voice quality</li> <li> Flexible goose neck supporting the microphone</li> <li> Power ON/OFF Switch</li> <li> On Air indicator</li> <li> PTT Switch</li> <li> PTT Lock Switch</li> <li> UP/Down Switches for compatible models</li> <li> Mode Switch for optimising audio (FM/SSB)</li> <li> Variable Microphone level adjustment</li> <li> Compatible leads available for</li> <li> Icom 8 Pin Round, Yaesu 8 Pin Round and modular, Kenwood 8 Pin Round and modular</li> <li> Note older radios may need you to install batteries but most modern radios do not need batteries</li> </ul> <p> <strong>Technical Specifications: </strong></p> <ul> <li> Microphone: Ceramic Microphone</li> <li> Power Consumption: 2mA (RX) 3mA (TX)</li> <li> IC: 1 piece</li> <li> Transistor: 11 pieces</li> <li> Diode: 6 pieces</li> <li> Output Voltage: 0 &ndash; 30mV (RMS)</li> <li> Output Impedance: 500 &ndash;100k ohms</li> <li> Compressor Level: 45dB (HIGH) 10dB (LOW) 6</li> <li> Power Source: DC3V</li> <li> Dimensions: 100mm (W) x 155mm (D) x 35mm(H)</li> <li> Weight: 450g</li> </ul> <p> &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; PRICE</p> <p> &nbsp;</p>

Suitable for most modern radios with required lead

Features:

  • High-sensitivity condensed microphone element - ensures better voice quality
  • Flexible goose neck supporting the microphone
  • Power ON/OFF Switch
  • On Air indicator
  • PTT Switch
  • PTT Lock Switch
  • UP/Down Switches for compatible models
  • Mode Switch for optimising audio (FM/SSB)
  • Variable Microphone level adjustment
  • Compatible leads available for
  • Icom 8 Pin Round, Yaesu 8 Pin Round and modular, Kenwood 8 Pin Round and modular
  • Note older radios may need you to install batteries but most modern radios do not need batteries

Technical Specifications:

  • Microphone: Ceramic Microphone
  • Power Consumption: 2mA (RX) 3mA (TX)
  • IC: 1 piece
  • Transistor: 11 pieces
  • Diode: 6 pieces
  • Output Voltage: 0 – 30mV (RMS)
  • Output Impedance: 500 –100k ohms
  • Compressor Level: 45dB (HIGH) 10dB (LOW) 6
  • Power Source: DC3V
  • Dimensions: 100mm (W) x 155mm (D) x 35mm(H)
  • Weight: 450g

            PRICE





How to Order?

Ordering from us is easy - just call 074-9737152 Tuesday, Thursday or Friday, 9.30-5.00 pm. It only takes a few minutes to process your order, and we can help you choose the right products for your purposes. For next day delivery, please call before 1.00 pm.

How to Pay?

We accept credit cards and debit cards over the phone. We accept PayPal and Bank Transfers by email.
