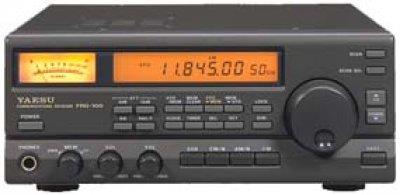

SECOND HAND FRG100 SHORT WAVE RECEIVER

<p>
	<span style="color:#0000ff;">Frequency Range ..... 50 - 30000 kHz<br />
	Circuit Type ........ Dual Conversion Superheterodyne<br />
	Antenna Impedance ... 50 or 450 ohm<br />
	Selectivity (-6dB) .. AM-Wide 6.0 kHz<br />
	AM-Narrow 4.0 kHz<br />
	SSB/CW 2.4 kHz<br />
	Sensitivity ......... &lt; .25 &mu;V 1.8-30 MHz SSB<br />
	&lt; 1 &mu;V 1.8-30 MHz AM<br />
	S+N/N=10dB)<br />
	Freq. Stability ..... &lt; &plusmn; 10 p.p.m. 0-50&deg;C.<br />
	Intermediate Freqs. . 1st IF = 47.21 MHz<br />
	2nd IF = 455 kHz<br />
	Audio Output ........ 1.4 Watts at 8 Ohms<br />
	Squelch Sensitivity . &lt; 2 &mu;V 1.8-30 MHz (CW, SSB, AM)<br />
	&lt; .32 &mu;V 28-30 MHz (FM)<br />
	IF Rejection ........ &gt; 70 dB (1.8-30 MHz)<br />
	Image Rejection ..... &gt; 60 dB (1.8-30 MHz)<br />
	Standard Steps ...... 10 Hz/100 Hz CW/SSB<br />
	100 Hz/1 kHz AM/FM<br />
	Power ............... 11-13.5 VDC 1.2 Amps<br />
	Dimensions .......... 9W x 3.6H x 9.3D inches<br />
	Weight .............. 6.6 Lbs.</span></p>
<p>
	<span style="color:#0000ff;">PRICE &euro;395</span></p>

Frequency Range ..... 50 - 30000 kHz
Circuit Type ........ Dual Conversion Superheterodyne
Antenna Impedance ... 50 or 450 ohm
Selectivity (-6dB) .. AM-Wide 6.0 kHz
AM-Narrow 4.0 kHz
SSB/CW 2.4 kHz
Sensitivity ......... < .25 μV 1.8-30 MHz SSB
< 1 μV 1.8-30 MHz AM
S+N/N=10dB)
Freq. Stability ..... < ± 10 p.p.m. 0-50°C.
Intermediate Freqs. . 1st IF = 47.21 MHz
2nd IF = 455 kHz
Audio Output ........ 1.4 Watts at 8 Ohms
Squelch Sensitivity . < 2 μV 1.8-30 MHz (CW, SSB, AM)
< .32 μV 28-30 MHz (FM)
IF Rejection ........ > 70 dB (1.8-30 MHz)
Image Rejection ..... > 60 dB (1.8-30 MHz)
Standard Steps ...... 10 Hz/100 Hz CW/SSB
100 Hz/1 kHz AM/FM
Power ............... 11-13.5 VDC 1.2 Amps
Dimensions .......... 9W x 3.6H x 9.3D inches
Weight .............. 6.6 Lbs.

PRICE €395
