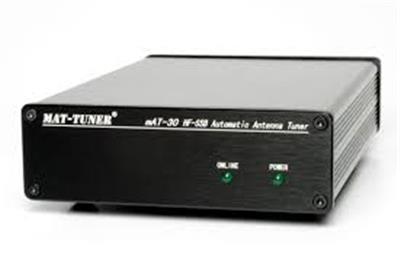

The mAT-30 is an automatic tuner intended for use with modern Yaesu transceivers. It works with Yaesu transceivers that supports an FC-30, FC-40 or FC-50 Yaesu tuner; a partial list of compatible units includes: FT-100, FT-857D, FT-897D, FT-450D, FT-891, FT-950, FT-991, FT-991A, FTDX-3000. The operating is the same as the method of the Yaesu tuner, which is simple and convenient. At present, the mAT-30 does not support the FT-817 / FT-818. If you operate them, you can choose the mAT-10, which is specially designed for QRP transceivers and perfectly supports the FT-817 / FT-818 and other QRP devices.

The mAT-30 connects to the transceiver via its CAT/LINEAR jack to control the tuning cycle, the transceivers tune button controls the tuner. The CAT/LINEAR jack also powers the tuner, so it requires no external power supply. Tuning is performed when the tune button is pushed on the front of the transceiver and held for one second.

The mAT-30 can work within the range of 1.8 MHz to 54 MHz, at power levels up to 120 watts. It will tune dipoles, verticals, yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

The mAT-30 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-30 uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-30 "learns" as it is used, adapting to the bands and frequencies as it goes.

The mAT-30's control cable mAT-CY provides control signals between Yaesu transceiver and the tuner. As the figure shows, the control cable have two mini DIN 8-pin plugs. Push and hold the transceiver's tune button to start the tuning process. Push 'tuner' quickly to bypass the tuner. The supplied transceiver control cable is around 50 cm long.

Please note: The mAT-30 is rated at 120 Watts maximum power input at most. Many HAM transceivers, and virtually all amplifiers, output well over 120 Watts. Power levels that significantly exceed the given specifications will definitely damage or destroy your mAT-30. If your tuner fails during overload, it could also damage your transceiver. Be sure to observe the specified power limitations.

• Suitable for: Yeasu FC-30 / Yeasu FC-40 / Yeasu FC-50 / Yaesu FT-100 / Yaesu FT-857D / Yaesu FT-897D / Yaesu FT-450D / Yaesu FT-891 / Yaesu FT-950 / Yaesu FT-991 / Yaesu FT-991A / FTDX-3000
• Frequency memories: 16.000 for instantaneous frequency and band changing
• Impedance: 50 Ohm
• Power range: 0.1 to 120 Watts SSB and CW peak power, 30 Watts on PSK and digital modes, 100 Watts on 6 meter band.
• Current consumption: 500 mA or less
• Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune
• PRICE €179
