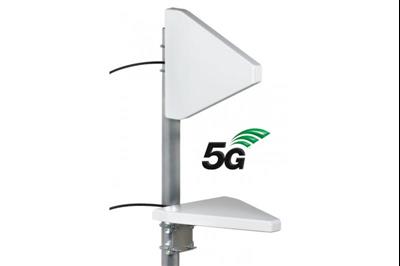

The MIMO antenna consists of two identical units - one of them should be mounted vertically, the second - horizontally. The distance between the units should be at least 37 cm.
5G MIMO logarithmic antenna is designed for use in GSM/DCS/UMTS/HSDPA/LTE/5G systems operating in the 698-3800 MHz range. It effectively solves the common problem of inadequate signal strength at the installation location of a modem with a GSM/UMTS/LTE/5G card. If this is the case, it is usually enough to connect an antenna to the modem to achieve a sufficient signal strength. In addition to that, the antenna has 2 cables with a length of 5 meters, terminated with an SMA plug.
The antenna is designed to work with LTE/5G modems (equipped with two antenna connectors), telephones and GSM, DCS, 3G, LTE, 5G modems.
MIMO (Multiple Input, Multiple Output) – is a method for multiplying the capacity of a radio link using multiple transmitting and receiving antennas to exploit multipath propagation.
-
Frequency range: 698-3800 MHz,
-
Gain: 9 dBi,
-
Cable length: 5 m,
-
SMA plug,
-
VSWR: max 2.3,
-
MIMO technology,
-
DC-shorted,
PRICE €125
