RG MINI 8 MIL

<p> Top quality Black 50 ohm coaxial cable with 95% braid, mutli-strand centre core.&nbsp;</p> <ul> <li> Impedance: 50 Ohms</li> <li> Core: 19 X 0.28mm</li> <li> Colour: Black</li> <li> Foam PE</li> <li> Velocity factor 0.85</li> </ul> <p> Loss per 100m&nbsp;&nbsp; per dB</p> <p> 30 MHz &nbsp;&nbsp;&nbsp;&nbsp; 5.2 db</p> <p> 50 Mhz&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 6.3 db</p> <p> 100 Mhz&nbsp;&nbsp;&nbsp;&nbsp; 8.91db</p> <p> 200 Mhz&nbsp;&nbsp;&nbsp;&nbsp; 12.83 db</p> <p> 400 Mhz &nbsp;&nbsp;&nbsp; 18.62db</p> <p> 600 Mhz&nbsp;&nbsp;&nbsp; 23.25 db</p> <p> 800 Mhz&nbsp;&nbsp;&nbsp; 27.72 db</p> <p> 1000Mhz &nbsp; 31.24db</p> <p> &nbsp;</p> <p> Supplied in multiples of 5 metres length</p> <p> &nbsp;</p> <p> <strong>PRICE PER METRE &euro;1.50</strong></p> <p> <strong>PRICE PER 100 METRE ROLL &euro;119</strong></p> <p> <strong>ALSO AVAILABLE TEFLON&nbsp; 7MM PL259 PLUGS&nbsp; &euro;2.50 EACH</strong></p>

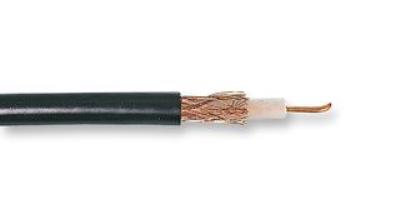

Top quality Black 50 ohm coaxial cable with 95% braid, mutli-strand centre core.

  • Impedance: 50 Ohms
  • Core: 19 X 0.28mm
  • Colour: Black
  • Foam PE
  • Velocity factor 0.85

Loss per 100m   per dB

30 MHz      5.2 db

50 Mhz      6.3 db

100 Mhz     8.91db

200 Mhz     12.83 db

400 Mhz     18.62db

600 Mhz    23.25 db

800 Mhz    27.72 db

1000Mhz   31.24db



Supplied in multiples of 5 metres length



PRICE PER METRE €1.50

PRICE PER 100 METRE ROLL €119

ALSO AVAILABLE TEFLON  7MM PL259 PLUGS  €2.50 EACH
