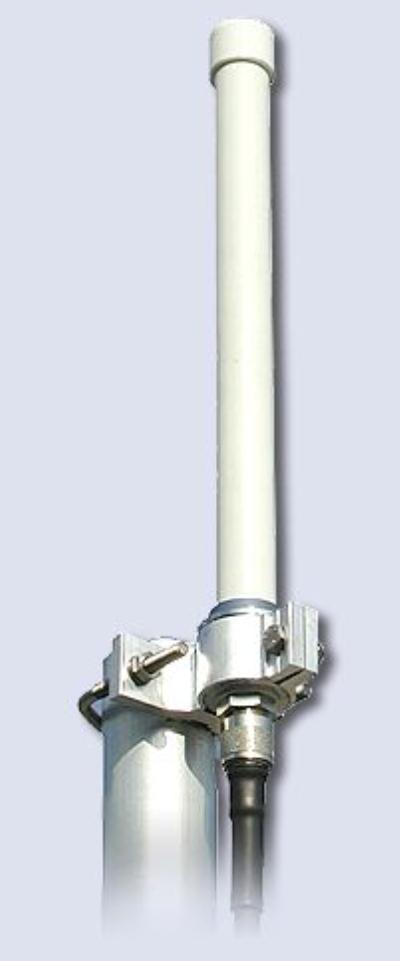

2.4GHZ OMNI AERIAL

<p><strong><font size="2">Features:</font></strong></p>
<table width="100%" cellspacing="0" cellpadding="0" border="0">
    <tbody>
        <tr>
            <td width="5%" valign="top" align="left"><font size="2">-</font></td>
            <td width="95%" valign="top"><font size="2">Base station antenna, Omnidirectional </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="2">-</font></td>
            <td width="95%" valign="top"><font size="2">Mono-band, High-gain </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="2">-</font></td>
            <td width="95%" valign="top"><font size="2">DC-ground protection </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="2">-</font></td>
            <td width="95%" valign="top"><font size="2">High quality PCB radiator protected by fiberglass tube </font></td>
        </tr>
        <tr>
            <td width="5%" valign="top" align="left"><font size="2">-</font></td>
            <td width="95%" valign="top"><font size="2">For WLAN system</font></td>
        </tr>
    </tbody>
</table>
<p><br />
<strong><font size="2">Part Numbers:</font></strong></p>
<table width="100%" cellspacing="0" cellpadding="0" border="0">
    <tbody>
        <tr>
            <td>
            <table width="100%" cellspacing="0" cellpadding="0" border="0">
                <tbody>
                    <tr>
                        <td width="100%" valign="top"><font size="2"><strong>P/N 2130220.00 SCO-2.4-6 <br />
                        </strong></font></td>
                    </tr>
                </tbody>
            </table>
            &nbsp;</td>
        </tr>
    </tbody>
</table>
<table width="100%" cellspacing="0" cellpadding="0" border="0">
    <tbody>
        <tr>
            <td>
            <table width="100%" cellspacing="0" cellpadding="0" border="0">
                <tbody>
                    <tr>
                        <td width="100%" valign="top" align="left" colspan="2"><font size="1"><strong>Electrical Data</strong></font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Type: 3x1/2&lambda; colinear dipole array </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Frequency range: 2.3-2.5 GHz for WLAN system </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Impedance: 50&Omega; </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Radiation (H-plane): 360&deg; omnidirectional </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Radiation (E-plane): beamwidth @ -3 dB = 22&deg; </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Radiation angle: 0&deg; </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Polarization: linear vertical </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Gain: 3.9 dBd - 6 dBi </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">SWR in bandwidth: &le; 1.5: </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Max. power (CW) @ 30&deg;C: 20 Watts </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Connector: N-female</font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="center"><font size="1">&nbsp;</font></td>
                        <td width="95%" valign="top"><font size="1"><strong>&nbsp;</strong></font></td>
                    </tr>
                    <tr>
                        <td width="100%" valign="top" align="left" colspan="2"><font size="1"><strong>Mechanical Data</strong></font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Materials: Aluminium, Fiberglass, Brass, PCB </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Wind load / resistance: 11 N @ 150 Km/h / 200 Km/h </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Wind surface: 0.01 m&sup2; </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Height (approx.): 325 mm </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Weight (approx.): 350 gr </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top"><font size="1">Operating temperature: -40&deg; C to +80&deg; C </font></td>
                    </tr>
                    <tr>
                        <td width="5%" valign="top" align="left"><font size="1">-</font></td>
                        <td width="95%" valign="top">
                        <p><font size="1">Mounting mast: &Oslash; 35-54 mm </font></p>
                        <p><strong><font size="1">PRICE &euro;50</font></strong></p>
                        </td>
                    </tr>
                </tbody>
            </table>
            </td>
        </tr>
    </tbody>
</table>

Features:

- Base station antenna, Omnidirectional
- Mono-band, High-gain
- DC-ground protection
- High quality PCB radiator protected by fiberglass tube
- For WLAN system


Part Numbers:

P/N 2130220.00 SCO-2.4-6

Electrical Data
- Type: 3x1/2λ colinear dipole array
- Frequency range: 2.3-2.5 GHz for WLAN system
- Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth @ -3 dB = 22°
- Radiation angle: 0°
- Polarization: linear vertical
- Gain: 3.9 dBd - 6 dBi
- SWR in bandwidth: ≤ 1.5:
- Max. power (CW) @ 30°C: 20 Watts
- Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
- Connector: N-female

Mechanical Data
- Materials: Aluminium, Fiberglass, Brass, PCB
- Wind load / resistance: 11 N @ 150 Km/h / 200 Km/h
- Wind surface: 0.01 m²
- Height (approx.): 325 mm
- Weight (approx.): 350 gr
- Operating temperature: -40° C to +80° C
-

Mounting mast: Ø 35-54 mm

PRICE €50
