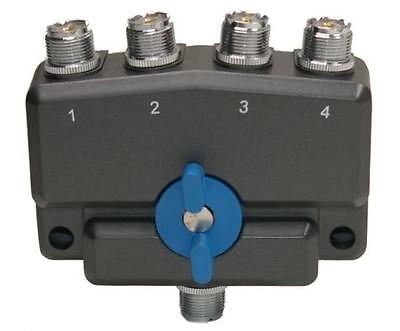

A high quality rf coax switch
4 way switch with SO239 sockets.
Unused outputs are shorted to earth.
• Frequency Range: DC - 900 MHz
• Power Range:
...DC - 30 MHz: 1.5 KW
...30 MHz - 200 MHz: 1 KW
...200 MHz - 500 MHz: 500 Watt
...500 MHz - 900 MHz: 150 Watt
• Insertion Loss:
...DC - 500 MHz >= 0.1 dB
...500 MHz - 900 MHz >= 0 .2 dB
• Output Port Isolation:
...DC - 500 MHz <= 60 dB
...500 MHz - 900 MHz <= 55 dB
• VSWR:
...DC - 500 MHz >= 1.10
...500 MHz - 900 MHz >= 1.25
• Connector Type:
...Input Port: 1 (SO-239)
...Output Port: 4 (SO-239)
PRICE €95
