SIRIO GAINMASTER

<p>
	&nbsp; &nbsp; &nbsp; &nbsp;<strong>Introducing the highest gain CB aerial available.&nbsp; &nbsp;</strong></p>
<p>
	Gain-Master&trade; is a 0.625&lambda; high tech fiberglass<br />
	base station antenna for CB and 10m amateur band</p>
<p class="testo">
	completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.<br />
	<br />
	Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.<br />
	<br />
	The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary.<br />
	<br />
	The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.<br />
	<br />
	Made of telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.<br />
	<br />
	Gain-Master&trade; is the new reference standard in its class of antennas.</p>
<p>
	&nbsp; &nbsp; &nbsp;Height&nbsp;&nbsp; :&nbsp; 7360mm with bracket, radiator 6850mm</p>
<p>
	Materials specification :</p>
<p>
	Whip made of white fiberglass four sections composite tube,<br />
	radiator made of copper wire and low loss coax cable,<br />
	stainless steel hardware, anodized AW6060 aluminium, UV<br />
	stabilized thermoplastic.</p>
<p>
	<span class="testo">Main advantages :</span></p>
<p>
	<span class="testo">It does not require ground plane radials because it is a balanced antenna that function as a centre-fed dipole.<br />
	<br />
	It&#39;s protected against static discharge by DC-short.<br />
	<br />
	Thanks to it&#39;s cable coil (RF-Choke) at the base, Gain-Master&trade; is fully decoupled from its supporting structure (poles, towers, etc.) with the benefit of preserving both the impedance that the radiation pattern.</span></p>
<p>
	&nbsp;</p>
<h3>
	PRICE&nbsp; &euro;149</h3>
<p>
	&nbsp;</p>

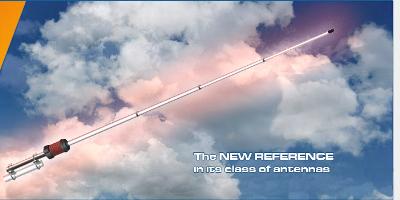

       Introducing the highest gain CB aerial available.

Gain-Master™ is a 0.625λ high tech fiberglass
base station antenna for CB and 10m amateur band

completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.

Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.

The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary.

The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.

Made of telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.

Gain-Master™ is the new reference standard in its class of antennas.

     Height   :  7360mm with bracket, radiator 6850mm

Materials specification :

Whip made of white fiberglass four sections composite tube,
radiator made of copper wire and low loss coax cable,
stainless steel hardware, anodized AW6060 aluminium, UV
stabilized thermoplastic.

Main advantages :

It does not require ground plane radials because it is a balanced antenna that function as a centre-fed dipole.

It's protected against static discharge by DC-short.

Thanks to it's cable coil (RF-Choke) at the base, Gain-Master™ is fully decoupled from its supporting structure (poles, towers, etc.) with the benefit of preserving both the impedance that the radiation pattern.



PRICE  €149
