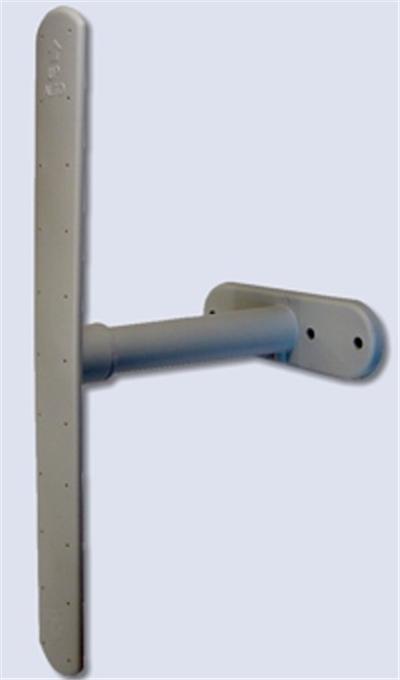

3G 4G HIGH GAIN AERIAL OMNIDIRECTIONAL

<p>
	<font size="2">Frequency range: 880-960 MHz &amp; 1710-2170 MHz &amp; 2400-2700 MHz for DCS,PCS,DECT,UMTS, WLAN and LTE systems </font></p>
<p>
	<font size="2">Gain:<br />
	&nbsp;5 dBi for GSM 900&amp;1800<br />
	&nbsp;6 dBi for UMTS<br />
	&nbsp;5:6 dBi for WLAN and LTE </font></p>
<p>
	<font size="2">Max. power (CW) @ 30&deg;C:<br />
	&nbsp;20 Watts for GSM 900<br />
	&nbsp;10 Watts for GSM 1800 &amp; UMTS<br />
	&nbsp;6 Watts for WLAN &amp; LTE </font></p>
<p>
	<font size="2">Cable type / Length: White Low Loss&nbsp; 5m</font></p>
<p>
	<font size="2">Materials: Thermoplastic UV Stabilized Grey RAL 7035 </font></p>
<p>
	<font size="2">Hardware material: Galvanized steel </font></p>
<p>
	<font size="2">Dimensions (approx.): 335 x 166 x 144 mm with bracket </font></p>
<table border="0" cellpadding="0" cellspacing="0" width="100%">
	<tbody>
		<tr>
			<td align="left" valign="top" width="5%">
				&nbsp;</td>
			<td valign="top" width="95%">
				<font size="2">Installation type: </font></td>
		</tr>
	</tbody>
</table>
<p>
	<font size="2">mast: &Oslash; 25-42 mm whit U-bolt (included)&nbsp; </font></p>
<p>
	<font size="2">PRICE &euro;89</font></p>

Frequency range: 880-960 MHz & 1710-2170 MHz & 2400-2700 MHz for DCS,PCS,DECT,UMTS, WLAN and LTE systems

Gain:
 5 dBi for GSM 900&1800
 6 dBi for UMTS
 5:6 dBi for WLAN and LTE

Max. power (CW) @ 30°C:
 20 Watts for GSM 900
 10 Watts for GSM 1800 & UMTS
 6 Watts for WLAN & LTE

Cable type / Length: White Low Loss  5m

Materials: Thermoplastic UV Stabilized Grey RAL 7035

Hardware material: Galvanized steel

Dimensions (approx.): 335 x 166 x 144 mm with bracket

  Installation type:

mast: Ø 25-42 mm whit U-bolt (included)

PRICE €89
