LONG COMMUNICATIONS

HEAVY DUTY YAGI

<p>
	The S.3Y Series are of a rugged and reliable construction for communication networks at both VHF &amp; UHF. The one piece folded dipole incorporates a d.c. short to minimise static interference. The balun assembly is completely encapsulated in epoxy resin, totally preventing moisture ingress, and has been tested to BS5490:IP67. These antennas give a gain of 6dBd with front to back ratio typically 15 dB. They are supplied as standard with 3 metres of RG213 cable terminated with an &#39;N&#39; type socket, although cable and connector options are available upon request.<br />
	&nbsp;</p>
<ul>
	<li>
		&gt; Manufactured from 69-500MHz</li>
	<li>
		&gt; Gain 6dBd</li>
	<li>
		&gt; 3dB Beamwidth: HBW 84&ordm; VBW 62&ordm;</li>
	<li>
		&gt; Power handling 150W</li>
	<li>
		&gt; Vertical &amp; Horizontal Polarisation</li>
	<li>
		&gt; Front to back ratio &gt; 15dB</li>
</ul>
<p>
	&nbsp;</p>
<p>
	<img src="http://www.skymasts.com/images/productImages/thumb_S3Y-H.jpg" />&nbsp;&nbsp;&nbsp; <img src="http://www.skymasts.com/images/productImages/thumb_S3Y-E.jpg" /></p>

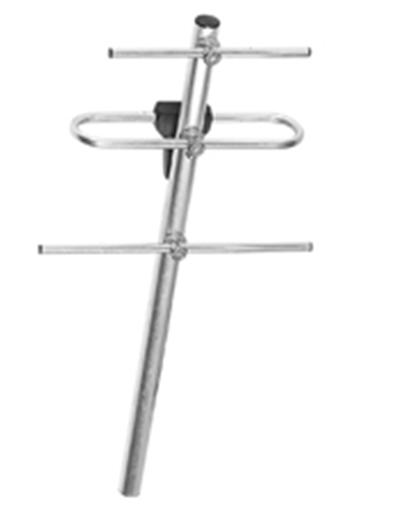

The S.3Y Series are of a rugged and reliable construction for communication networks at both VHF & UHF. The one piece folded dipole incorporates a d.c. short to minimise static interference. The balun assembly is completely encapsulated in epoxy resin, totally preventing moisture ingress, and has been tested to BS5490:IP67. These antennas give a gain of 6dBd with front to back ratio typically 15 dB. They are supplied as standard with 3 metres of RG213 cable terminated with an 'N' type socket, although cable and connector options are available upon request.


  • > Manufactured from 69-500MHz
  • > Gain 6dBd
  • > 3dB Beamwidth: HBW 84º VBW 62º
  • > Power handling 150W
  • > Vertical & Horizontal Polarisation
  • > Front to back ratio > 15dB
