LONG COMMUNICATIONS

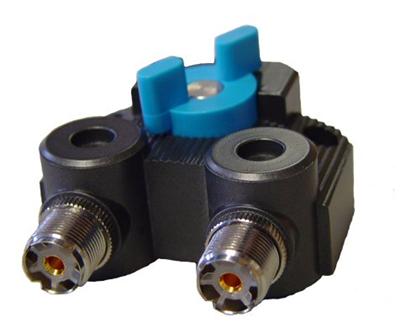

2 WAY COAX SWITCH

<div class="tab_page" id="tab_pictures">
	<p>
		A hgh quality rf coaxial switch</p>
	<p>
		Specification:</p>
	<p>
		Frequency Range: DC - 1 GHz<br />
		&bull; Power Range:<br />
		&hellip;DC&nbsp;- 30 MHz:&nbsp; 2 KW<br />
		&hellip;30 MHz - 200 MHz: 1 KW<br />
		&hellip;200 MHz - 500 MHz: 500 Watt<br />
		&hellip;500 MHz - 1 GHz: 250 Watt<br />
		&bull; Insertion Loss<strong>:</strong><br />
		&hellip;DC&nbsp;- 500 MHz &lt;= 0.05 dB<br />
		&hellip;500MH- 1 GHz &lt;= 0.10 dB<br />
		&bull; Output Port 1/2 Isolation:<br />
		&hellip;DC&nbsp;- 500 MHz &gt;= 70 dB<br />
		&hellip;500 MH - 1 GHz &gt;= 60 dB<br />
		&bull; VSWR:<br />
		&hellip;DC&nbsp;- 500 MHz &lt;= 1.15<br />
		&hellip;500 MH - 1 GHz &lt;= 1.25<br />
		&bull; Connector Type:<br />
		&hellip;Input Port: 1&nbsp;UHF-Female (SO-239)<br />
		&hellip;Output Port: 2 UHF-Female (SO-239)<br />
		<br />
		<strong>PRICE &euro;50</strong></p>
</div>
<p>
	&nbsp;</p>

A hgh quality rf coaxial switch

Specification:

Frequency Range: DC - 1 GHz
• Power Range:
…DC - 30 MHz:  2 KW
…30 MHz - 200 MHz: 1 KW
…200 MHz - 500 MHz: 500 Watt
…500 MHz - 1 GHz: 250 Watt
• Insertion Loss:
…DC - 500 MHz <= 0.05 dB
…500MH- 1 GHz <= 0.10 dB
• Output Port 1/2 Isolation:
…DC - 500 MHz >= 70 dB
…500 MH - 1 GHz >= 60 dB
• VSWR:
…DC - 500 MHz <= 1.15
…500 MH - 1 GHz <= 1.25
• Connector Type:
…Input Port: 1 UHF-Female (SO-239)
…Output Port: 2 UHF-Female (SO-239)

PRICE €50
