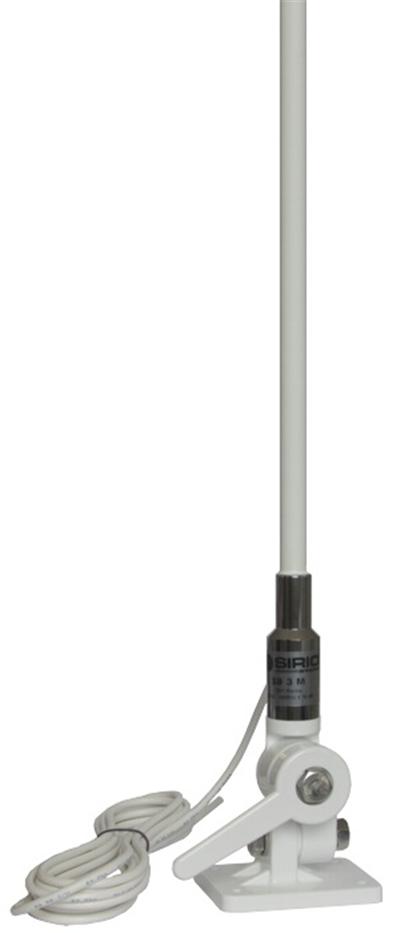

SIRIO RATCHET BASE AERIAL 1.5M

<p>
	&ndash; Marine antenna, Mono-band<br />
	&ndash; Omnidirectional<br />
	&ndash; Designed to work without Ground Plane<br />
	&ndash; Protection from static discharges DC-Ground<br />
	&ndash; Chrome-plated brass ferrule<br />
	&ndash; Stainless steel hardware<br />
	&ndash; High quality whip made of brass and copper protected by fiberglass tube<br />
	&ndash; Supplied with white coaxial cable RG-58 C/U directly connected</p>
<p>
	&ndash; Type:3/4 &lambda; J-pole<br />
	&ndash; Frequency range:<br />
	TX band: 155.5 &ndash; 160 MHz @ SWR &le;2<br />
	RX band: 156-162 MHz<br />
	&ndash; Polarization: linear vertical<br />
	&ndash; Gain: 2 dBd &ndash; 4.15 dBi<br />
	&ndash; Max. Power (CW) @ 30&deg;C: 100 Watts<br />
	&ndash; Standard mount: M-8 NY<br />
	&ndash; Cable length / Type: 5 m / white RG 58</p>
<p>
	&ndash; Materials: Fiberglass, Nylon, Chromed brass<br />
	&ndash; Height (approx.): 1480 mm<br />
	&ndash; Weight (approx.): 750 gr</p>
<p>
	PRICE &euro;89</p>

– Marine antenna, Mono-band
– Omnidirectional
– Designed to work without Ground Plane
– Protection from static discharges DC-Ground
– Chrome-plated brass ferrule
– Stainless steel hardware
– High quality whip made of brass and copper protected by fiberglass tube
– Supplied with white coaxial cable RG-58 C/U directly connected

– Type:3/4 λ J-pole
– Frequency range:
TX band: 155.5 – 160 MHz @ SWR ≤2
RX band: 156-162 MHz
– Polarization: linear vertical
– Gain: 2 dBd – 4.15 dBi
– Max. Power (CW) @ 30°C: 100 Watts
– Standard mount: M-8 NY
– Cable length / Type: 5 m / white RG 58

– Materials: Fiberglass, Nylon, Chromed brass
– Height (approx.): 1480 mm
– Weight (approx.): 750 gr

PRICE €89
