– Base station antennas
– Directional, High-gain
– Horizontal polarization
– High power handling capability
– Elements equipped whit waterproof jointing sleeve
– Made of aluminium alloy 6063 T-832

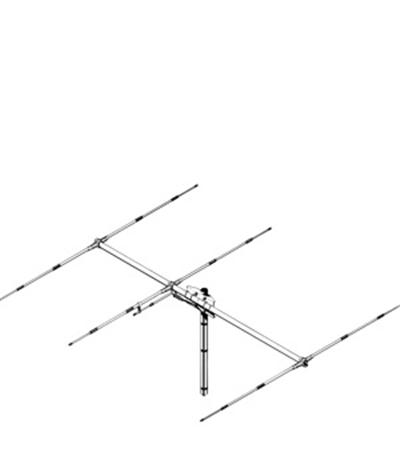

– Type: 3 element Yagi antenna
– Frequency range: tunable from 26.5 to 30 MHz
– Gain: 8.5 dBd, 10.65 dBi
– Bandwidth @ SWR ≤ 2: ≥ 1200 KHz @ 26.5 MHz
– Max. power:
1000 Watts (CW) continuous
3000 Watts (CW) short time
– Connector: UHF-female

– Materials: Aluminium, Zamak, Zinc plated steel
– Dimensions (approx.): 5942x2710x100 mm / 19.5×8.9×0.3 ft
– Weight (approx.): 4700 gr / 10.4 lb
– Mounting mast: Ø 35-50 mm / Ø 1.4-1.9 in

PRICE €175
