– Base station antennas
– Directional, High-gain
– Horizontal polarization
– High power handling capability
– Elements equipped whit waterproof jointing sleeve
– Made of aluminium alloy 6063 T-832

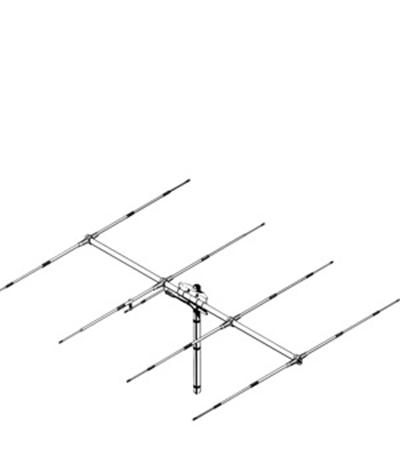

– Type: 4 element Yagi antenna
– Frequency range: tunable from 26.5 to 30 MHz
– Gain: 11 dBd, 13.15 dBi
– Bandwidth @ SWR ≤ 2: ≥ 850 KHz @ 26.5 MHz
– Max. power:
1000 Watts (CW) continuous
3000 Watts (CW) short time
– Connector: UHF-female

– Materials: Aluminium, Zamak, Zinc plated steel
– Dimensions (approx.): 5846x4030x100 mm / 19.2×13.2×0.3 ft
– Weight (approx.): 6100 gr / 13.5 lb
– Mounting mast: Ø 35-50 mm / Ø 1.4-1.9 in

PRICE €200
