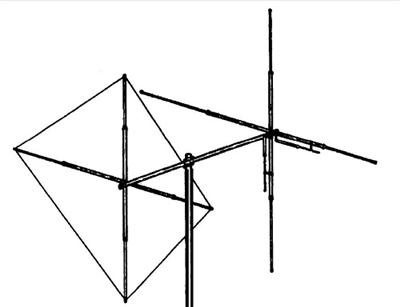

Using a Quad reflector
with a Yagi driven element,
the Y-Quad® combines the
advantages of both designs
to give the best performing
lightweight, switchable polarity
antenna available. The Quad
reflector assures low angle of
radiation even at low heights
for exceptional long distance
performance. The Y-Quad®
uses a 6’ long boom and has a
gain of 11 dB.

FEATURES, FUNCTIONS AND SPECIFICATIONS:
* Construction: Telescoping Aluminum Tubing
* Element Clamps: Quality Aluminum, Full Compression, No Holes drilled in elements or boom means longer life
* Boom-to-Element Mount: Heavy Extruded Aluminum
* SWR Adjustment: Gamma Match 52 Ohm
* Power Handling Capability: 2 KW, Optional are 5 KW, 10 KW or 30 KW Gamma Matchers available.

MECHANICAL SPECIFICATIONS:
Boom Length: 183 cm (6 feet)
Boom OD: 3,8 cm ( 1.5 inches)
Number of Elements: 4
Longest Radius: 533 cm (17,5 feet)
Turn Radius: 244 cm (8 feet)
Wind Load/Surface Area: 0,362 m2 (3.9 sq.ft)
Wind Survival: 135 Km/h (90 Miles)
Tuning: 11 Meters
Gain in dB: 11
Power Multiplication: 14x
Front-to-Back Separation: 25-30 dB
VSWR adjustable: 1.1:1
Weight: 6,8 Kg (15 Pounds)

PRICE €400
