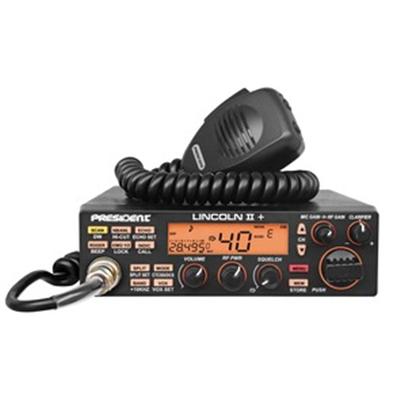

PRESIDENT LINCOLN 2 PLUS

<p>
	<strong>FEATURES, FUNCTIONS AND SPECIFICATIONS:</strong><br />
	- Rotary switch and Up/down channel selector<br />
	- VFO Mode<br />
	- Volume adjustment and ON/OFF<br />
	- RF Power<br />
	- Manual squelch and ASC<br />
	- Multi-function LCD display<br />
	- Frequencies display<br />
	- S-meter<br />
	- Public Address<br />
	- Vox function (Hands free)<br />
	- ANL filter , NB and HI-CUT<br />
	- RF Gain / Mike gain<br />
	- Clarifier<br />
	- Channels and memories scan<br />
	- 6 Memories<br />
	- CTCSS (38 tones)<br />
	- DCS (104 codes)<br />
	- Dim<br />
	- MENU fonction key<br />
	- Beep Function<br />
	- Roger Beep<br />
	- Mode switch AM/FM/LSB/USB/CW<br />
	- Dual watch<br />
	- Key locking<br />
	- SWR (Power Reading /SWR)<br />
	- Preset 9/19<br />
	- TOT (Time Out Timer) adjustable<br />
	- Front microphone plug</p>
<p>
	Some of the differences (basicly small changes) &nbsp;between Lincoln-2 V3 and Lincoln-2Plus:<br />
	- Maximum Output Power 35W (small change)<br />
	- Firmware is updated<br />
	- Software is free available to see display of radio on a PC and has following functions<br />
	- The switch CH9/CH19 can be programmed with 2 other channels/frequencies<br />
	- Option to give the bands a name<br />
	- After modification te radio covers also 12M, new spectrum is 24.715-30.105 MHz</p>
<p>
	Bands</p>
<table border="0" cellpadding="0" cellspacing="5" style="margin-left:40px;">
	<tbody>
		<tr>
			<td class="carac">
				&nbsp;</td>
			<td class="carac">
				:</td>
			<td class="carac">
				10 + 12</td>
		</tr>
		<tr>
			<td class="carac">
				Modulation modes</td>
			<td class="carac">
				:</td>
			<td class="carac">
				AM/FM/LSB/USB/CW</td>
		</tr>
		<tr>
			<td class="carac">
				Frequency ranges</td>
			<td class="carac">
				:</td>
			<td class="carac">
				from 28.000 MHz to 29.700 MHz / from 24.880 Mhz to 24.980 Mhz</td>
		</tr>
		<tr>
			<td class="carac">
				CTCSS</td>
			<td class="carac">
				:</td>
			<td class="carac">
				38 tones</td>
		</tr>
		<tr>
			<td class="carac">
				DCS</td>
			<td class="carac">
				:</td>
			<td class="carac">
				104 codes</td>
		</tr>
		<tr>
			<td class="carac">
				Antenna impedance</td>
			<td class="carac">
				:</td>
			<td class="carac">
				50 ohms</td>
		</tr>
		<tr>
			<td class="carac">
				Power supply</td>
			<td class="carac">
				:</td>
			<td class="carac">
				13.2 V</td>
		</tr>
		<tr>
			<td class="carac">
				Dimensions H x W x D (in mm)</td>
			<td class="carac">
				:</td>
			<td class="carac">
				52 x 170 x 250</td>
		</tr>
		<tr>
			<td class="carac">
				Weight</td>
			<td class="carac">
				:</td>
			<td class="carac">
				1.4 kg</td>
		</tr>
		<tr>
			<td class="carac">
				Accessories supplied</td>
			<td class="carac">
				:</td>
			<td class="carac">
				power cord with fuse<br />
				1 microphone and its hanger<br />
				1 mounting bracket with fixing screws</td>
		</tr>
	</tbody>
</table>
<div style="font-weight:bold; margin-left:20px; margin-top:20px;">
	- Transmission</div>
<table border="0" cellpadding="0" cellspacing="5" style="margin-left:40px;">
	<tbody>
		<tr>
			<td class="carac">
				Frequency allowance</td>
			<td class="carac">
				:</td>
			<td class="carac">
				+/- 300 Hz</td>
		</tr>
		<tr>
			<td class="carac">
				Carrier power</td>
			<td class="carac">
				:</td>
			<td class="carac">
				12 W AM / 35 W FM / 35 W USB-LSB / 12 W CW</td>
		</tr>
		<tr>
			<td class="carac">
				Transmission interference</td>
			<td class="carac">
				:</td>
			<td class="carac">
				inferior to - 50 dBc</td>
		</tr>
		<tr>
			<td class="carac">
				Audio response</td>
			<td class="carac">
				:</td>
			<td class="carac">
				300 Hz to 3 kHz</td>
		</tr>
		<tr>
			<td class="carac">
				Emitted power in the adj. channel</td>
			<td class="carac">
				:</td>
			<td class="carac">
				inferior to 20 &micro;W</td>
		</tr>
		<tr>
			<td class="carac">
				Microphone sensitivity</td>
			<td class="carac">
				:</td>
			<td class="carac">
				3 mV</td>
		</tr>
		<tr>
			<td class="carac">
				Drain</td>
			<td class="carac">
				:</td>
			<td class="carac">
				6 A (with modulation)</td>
		</tr>
		<tr>
			<td class="carac">
				Modulated signal distortion</td>
			<td class="carac">
				:</td>
			<td class="carac">
				2 %</td>
		</tr>
	</tbody>
</table>
<div style="font-weight:bold; margin-left:20px; margin-top:20px;">
	- Reception</div>
<table border="0" cellpadding="0" cellspacing="5" style="margin-left:40px;">
	<tbody>
		<tr>
			<td class="carac">
				Maxi. sensitivity at 20 dB sinad</td>
			<td class="carac">
				:</td>
			<td class="carac">
				0,7 &mu;V -110 dBm (AM)<br />
				0,35 &mu;V -116 dBm (FM)<br />
				0.28&micro;V-118 dBm (USB/LSB/CW)</td>
		</tr>
		<tr>
			<td class="carac">
				Frequency response</td>
			<td class="carac">
				:</td>
			<td class="carac">
				300 Hz to 3 kHz</td>
		</tr>
		<tr>
			<td class="carac">
				Adjacent channel selectivity</td>
			<td class="carac">
				:</td>
			<td class="carac">
				60 dB</td>
		</tr>
		<tr>
			<td class="carac">
				Maximum audio power</td>
			<td class="carac">
				:</td>
			<td class="carac">
				3 W</td>
		</tr>
		<tr>
			<td class="carac">
				Squelch sensitivity</td>
			<td class="carac">
				:</td>
			<td class="carac">
				mini 0.2 &mu;V - 120 dBm<br />
				maxi 1 mV - 47 dBm</td>
		</tr>
		<tr>
			<td class="carac">
				Frequency image rejection rate</td>
			<td class="carac">
				:</td>
			<td class="carac">
				60 dB</td>
		</tr>
		<tr>
			<td class="carac">
				Intermediate frequency rej. rate</td>
			<td class="carac">
				:</td>
			<td class="carac">
				70 dB</td>
		</tr>
		<tr>
			<td class="carac">
				Drain</td>
			<td class="carac">
				:</td>
			<td class="carac">
				400 mA nominal, 600 mA max</td>
		</tr>
	</tbody>
</table>
<p>
	Back light color:<br />
	<img src="http://www.president-electronics.com/en/images/color_orange.gif" style="width:30px; height:30px; margin-left:35px;" /><img src="http://www.president-electronics.com/en/images/color_vert.gif" style="width:30px; height:30px; margin-left:5px;" /><img src="http://www.president-electronics.com/en/images/color_bleu.gif" style="width:30px; height:30px; margin-left:5px;" /></p>
<p>
	<img alt="ASC" height="37" src="http://www.president-electronics.com/en/images/ASC.jpg" style="float: left; margin: 5px; border: 0px none;" title="ASC" width="106" /></p>
<p>
	&nbsp;</p>
<p>
	&nbsp;</p>
<p>
	<span style="font-style:italic; font-size:0.8em;">Dimensions H x W x D (in mm) :</span> 52 x 170 x 250<br />
	<span style="font-style:italic; font-size:0.8em;">Weight :</span> 1.4 kg</p>
<p>
	&nbsp;</p>
<p>
	PRICE &euro;325 including modification</p>

FEATURES, FUNCTIONS AND SPECIFICATIONS:
- Rotary switch and Up/down channel selector
- VFO Mode
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-function LCD display
- Frequencies display
- S-meter
- Public Address
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Channels and memories scan
- 6 Memories
- CTCSS (38 tones)
- DCS (104 codes)
- Dim
- MENU fonction key
- Beep Function
- Roger Beep
- Mode switch AM/FM/LSB/USB/CW
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- Preset 9/19
- TOT (Time Out Timer) adjustable
- Front microphone plug

Some of the differences (basicly small changes)  between Lincoln-2 V3 and Lincoln-2Plus:
- Maximum Output Power 35W (small change)
- Firmware is updated
- Software is free available to see display of radio on a PC and has following functions
- The switch CH9/CH19 can be programmed with 2 other channels/frequencies
- Option to give the bands a name
- After modification te radio covers also 12M, new spectrum is 24.715-30.105 MHz

Bands

  : 10 + 12
Modulation modes : AM/FM/LSB/USB/CW
Frequency ranges : from 28.000 MHz to 29.700 MHz / from 24.880 Mhz to 24.980 Mhz
CTCSS : 38 tones
DCS : 104 codes
Antenna impedance : 50 ohms
Power supply : 13.2 V
Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg
Accessories supplied : power cord with fuse
1 microphone and its hanger
1 mounting bracket with fixing screws
- Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 12 W AM / 35 W FM / 35 W USB-LSB / 12 W CW
Transmission interference : inferior to - 50 dBc
Audio response : 300 Hz to 3 kHz
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3 mV
Drain : 6 A (with modulation)
Modulated signal distortion : 2 %
- Reception
Maxi. sensitivity at 20 dB sinad : 0,7 μV -110 dBm (AM)
0,35 μV -116 dBm (FM)
0.28µV-118 dBm (USB/LSB/CW)
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : mini 0.2 μV - 120 dBm
maxi 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 400 mA nominal, 600 mA max

Back light color:

ASC





Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg



PRICE €325 including modification
