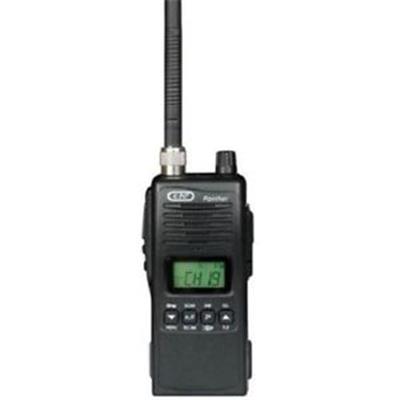

PANTHER HAND HELD CB RADIO

<div class="tab_page" id="tab_pictures">
	<b>HANDHELD CB TRANSCEIVER 40 CHANNEL AM / FM</b><br />
	<br />
	<ul>
		<li>
			Multistandard</li>
		<li>
			Squelch 6 levels.</li>
		<li>
			Large multi-function LCD display with backlight.</li>
		<li>
			Channel display or relative frequency.</li>
		<li>
			Channel selector switch Up / Down.</li>
		<li>
			S-Meter.</li>
		<li>
			Scan function.</li>
		<li>
			Roger Beep.</li>
		<li>
			Dual watch.</li>
		<li>
			Channel 19 emergency pre-set.</li>
		<li>
			Switch High / low power.</li>
		<li>
			Keypad lock.</li>
		<li>
			Socket for external microphone / speaker connection with 2,5 / 3,5 mm mono<br />
			<br />
			<b>GENERAL</b></li>
		<li>
			Frequency Range: 26 ~ 28MHz.</li>
		<li>
			Frequency Control: Phase Lock Loop (PLL) synthesizer.</li>
		<li>
			Channel spacing: 10KHz</li>
		<li>
			Modulation mode: AM/ FM</li>
		<li>
			Frequency Stability: &plusmn; 0.005%</li>
		<li>
			Channel step: 10KHz</li>
		<li>
			Maximum channel: &gt; 40 channel</li>
		<li>
			Operating Temperature Range: -25&deg;C to +50&deg;C</li>
		<li>
			Input Voltage: 7.4VDC</li>
		<li>
			Working Voltage: 6.8~8.4V</li>
		<li>
			Antenna Connector: TNC with 50 ohms</li>
		<li>
			Dimensions: 120(H)X54(W)X35(D)mm</li>
		<li>
			Weight: About 250g(Including battery)<br />
			<br />
			<b>TRANSMITTER</b></li>
		<li>
			AM /FM Power Output: FM: 1/4W | AM: Carry power 1/3W with 50% modulation</li>
		<li>
			Spurious Emissions: -55 dB.</li>
		<li>
			Carrier Suppression: -55 dB.</li>
		<li>
			Audio Frequency Response: 300Hz to 2.5KHz</li>
		<li>
			Max. Modulation FM +/- 2KHz | AM 100%<br />
			<br />
			<b>RECEIVER </b></li>
		<li>
			AM Sensitivity For 10dB S/N: &lt; 1.0 &mu;V.</li>
		<li>
			FM Sensitivity For 12dB S/N: &lt; 0.2 &mu;V.</li>
		<li>
			Image Rejection Ratio: &gt; -65 dB.</li>
		<li>
			Adjacent Channel Selectivity: &gt; -55 dB.</li>
		<li>
			Automatic Gain Control (AGC) Figure Of Merit: 100 mV for 10 dB Change in Audio Output.</li>
		<li>
			Squelch Adjustable: 6 Levels</li>
		<li>
			Audio Output Power: &gt; 0.5W</li>
		<li>
			Signal to noise ratio: &gt; 40db</li>
		<li>
			Internal Speaker: 8 Ohms; 1 Watts.<br />
			<br />
			<br />
			<b>Packet Includes:</b></li>
		<li>
			1x K-PO PANTHER Multi Channel CB Handheld</li>
		<li>
			1x K-PO PANTHER BATTERY PACK</li>
		<li>
			1x K-PO PANTHER AC ADAPTER LED</li>
		<li>
			1X User manual (English)</li>
	</ul>
	<p>
		&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; PRICE &euro;135</p>
</div>
<p>
	&nbsp;</p>

HANDHELD CB TRANSCEIVER 40 CHANNEL AM / FM

  • Multistandard
  • Squelch 6 levels.
  • Large multi-function LCD display with backlight.
  • Channel display or relative frequency.
  • Channel selector switch Up / Down.
  • S-Meter.
  • Scan function.
  • Roger Beep.
  • Dual watch.
  • Channel 19 emergency pre-set.
  • Switch High / low power.
  • Keypad lock.
  • Socket for external microphone / speaker connection with 2,5 / 3,5 mm mono

    GENERAL
  • Frequency Range: 26 ~ 28MHz.
  • Frequency Control: Phase Lock Loop (PLL) synthesizer.
  • Channel spacing: 10KHz
  • Modulation mode: AM/ FM
  • Frequency Stability: ± 0.005%
  • Channel step: 10KHz
  • Maximum channel: > 40 channel
  • Operating Temperature Range: -25°C to +50°C
  • Input Voltage: 7.4VDC
  • Working Voltage: 6.8~8.4V
  • Antenna Connector: TNC with 50 ohms
  • Dimensions: 120(H)X54(W)X35(D)mm
  • Weight: About 250g(Including battery)

    TRANSMITTER
  • AM /FM Power Output: FM: 1/4W | AM: Carry power 1/3W with 50% modulation
  • Spurious Emissions: -55 dB.
  • Carrier Suppression: -55 dB.
  • Audio Frequency Response: 300Hz to 2.5KHz
  • Max. Modulation FM +/- 2KHz | AM 100%

    RECEIVER
  • AM Sensitivity For 10dB S/N: < 1.0 μV.
  • FM Sensitivity For 12dB S/N: < 0.2 μV.
  • Image Rejection Ratio: > -65 dB.
  • Adjacent Channel Selectivity: > -55 dB.
  • Automatic Gain Control (AGC) Figure Of Merit: 100 mV for 10 dB Change in Audio Output.
  • Squelch Adjustable: 6 Levels
  • Audio Output Power: > 0.5W
  • Signal to noise ratio: > 40db
  • Internal Speaker: 8 Ohms; 1 Watts.


    Packet Includes:
  • 1x K-PO PANTHER Multi Channel CB Handheld
  • 1x K-PO PANTHER BATTERY PACK
  • 1x K-PO PANTHER AC ADAPTER LED
  • 1X User manual (English)

              PRICE €135
