LONG COMMUNICATIONS

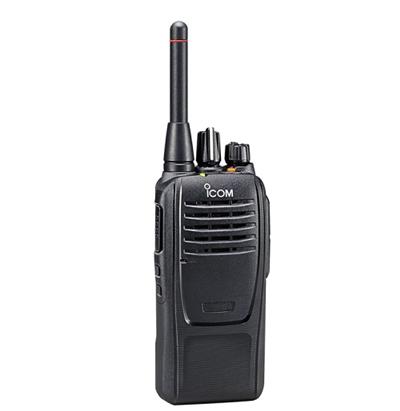

ICOM F29SR2

<div class="logo_std">
	<img alt="16ch PMR446" src="https://www.icom.co.jp/world/products/img/logo_std_pmr446.gif" /><img alt="MIL-STD 810" height="43" src="https://www.icom.co.jp/world/products/img/logo_std_mil.gif" width="88" /><img alt="IP67" height="43" src="https://www.icom.co.jp/world/products/img/logo_std_ip67.gif" width="80" /></div>
<div class="logo_std">
	&nbsp;</div>
<div class="logo_std">
	&nbsp;</div>
<div class="logo_std">
	<h2 class="mainline">
		Professional Licence-Free PMR 446 Transceiver with Usable 16 Channels</h2>
	<h2 class="headline">
		16 Usable Channels</h2>
	<p class="overview">
		The IC-F29SR2 meets the European standard EN 300 296 and has total of 16 channels including new 8 channels*.<br />
		<span class="caption">* New 8 channels may be restricted, depending on countries.</span></p>
	<h2 class="headline">
		Easy to Use</h2>
	<p class="overview">
		This simple to use radio is ideal for high turnover environments and shift work where the radio is constantly passed from person to person.</p>
	<h2 class="headline">
		Ultra Powerful Audio</h2>
	<p class="overview">
		<img alt="Ultra Powerful Audio" class="right_img" src="https://www.icom.co.jp/world/products/land_mobile/licensefree/ic-f29sr2/img/01.jpg" width="150" /></p>
	<p class="overview">
		Icom custom high power handling capacity speaker for 1500 mW powerful audio. Hear calls destined for you in all sorts of environments.</p>
	<h2 class="headline clear_both">
		Rotary Channel</h2>
	<p class="overview">
		Up to 32 operating channels and group code (16 ch &times; 2 zones) can be programmed to the 16-position rotary channel knob. The operating zone can be switched with the top red button.</p>
	<h2 class="headline">
		Call-Ring</h2>
	<p class="overview">
		The Call-Ring function can be used to call receivers with a ringer tone. Ten different ring patterns can be selected.</p>
	<h2 class="headline">
		Answer Back</h2>
	<p>
		he Smart-Ring function checks whether the receiver is in communication range with a ringer sound.</p>
	<h2 class="headline">
		Private Conversation</h2>
	<p class="overview">
		The built-in inversion voice scrambler provides private conversation. Up to 16 codes are selectable.</p>
	<h2 class="headline">
		21 Hours Operation</h2>
	<p class="overview">
		The supplied Li-Ion battery pack, BP-279, provides up to 21 hours of operating time.<br />
		The supplied rapid charger BC-213 charges the BP-279 in 2.5 hours.</p>
	<h2 class="headline">
		Group Call</h2>
	<p class="overview">
		The user programmable CTCSS and DTCS codes can be used for group call. You will only send a call to specified group members using the same tone and same channel.</p>
	<h2 class="headline clear_both">
		Other features</h2>
	<ul>
		<li>
			Low battery alert</li>
		<li>
			Time-out-timer function</li>
		<li>
			Monitor function</li>
		<li>
			Siren alarm function</li>
		<li>
			Surveillance function</li>
		<li>
			Key lock function</li>
		<li>
			Microphone gain level adjustment</li>
		<li>
			Power on scan function</li>
		<li>
			Three programmable buttons</li>
		<li>
			PC programmable</li>
		<li>
			VOX capability for hands-free operation<br />
			(Optional headset required)</li>
	</ul>
	<h2 class="headline">
		Supplied Accessories</h2>
	<ul>
		<li>
			Li-ion battery pack, BP-279</li>
		<li>
			Belt clip, MB-133</li>
		<li>
			Rapid charger, BC-213</li>
		<li>
			AC adapter, BC-123SE/SUK*</li>
	</ul>
</div>
<table class="spec_chart">
	<tbody>
		<tr>
			<th colspan="2">
				Frequency coverage</th>
			<td>
				446.00625&ndash;446.19375MHz<br />
				(16 channels)</td>
		</tr>
		<tr>
			<th colspan="2">
				Output power</th>
			<td>
				500mW (ERP)</td>
		</tr>
		<tr>
			<th rowspan="2">
				Audio output power<br />
				(at 5% distortion)</th>
			<th>
				Internal speaker</th>
			<td>
				1500 mW typ.<br />
				(with 8&Omega; load)</td>
		</tr>
		<tr>
			<th>
				External speaker</th>
			<td>
				400mW typ.<br />
				(with 8&Omega; load)</td>
		</tr>
		<tr>
			<th colspan="2">
				Dimensions<br />
				(projections not included; W&times;H&times;D)</th>
			<td>
				52.2&times; 186.1&times; 24.5 mm<br />
				(with BP-279)</td>
		</tr>
		<tr>
			<th colspan="2">
				Weight (approx.)</th>
			<td>
				240g (with BP-279)</td>
		</tr>
		<tr>
			<th colspan="2">
				Communication range*(approx.)</th>
			<td>
				8km (Wide open space)</td>
		</tr>
		<tr>
			<th colspan="2">
				Operating temperature</th>
			<td>
				&ndash;25&deg;C to +55&deg;C</td>
		</tr>
		<tr>
			<th colspan="2">
				IP rating</th>
			<td>
				IP67 (Dust-tight and waterproof protection)</td>
		</tr>
		<tr>
			<th colspan="2">
				Military standrad:</th>
			<td>
				MIL-STD-810-G</td>
		</tr>
	</tbody>
</table>
<p>
	PHONE FOR MORE DETAILS</p>

16ch PMR446MIL-STD 810IP67



Professional Licence-Free PMR 446 Transceiver with Usable 16 Channels

16 Usable Channels

The IC-F29SR2 meets the European standard EN 300 296 and has total of 16 channels including new 8 channels*.
* New 8 channels may be restricted, depending on countries.

Easy to Use

This simple to use radio is ideal for high turnover environments and shift work where the radio is constantly passed from person to person.

Ultra Powerful Audio

Ultra Powerful Audio

Icom custom high power handling capacity speaker for 1500 mW powerful audio. Hear calls destined for you in all sorts of environments.

Rotary Channel

Up to 32 operating channels and group code (16 ch × 2 zones) can be programmed to the 16-position rotary channel knob. The operating zone can be switched with the top red button.

Call-Ring

The Call-Ring function can be used to call receivers with a ringer tone. Ten different ring patterns can be selected.

Answer Back

he Smart-Ring function checks whether the receiver is in communication range with a ringer sound.

Private Conversation

The built-in inversion voice scrambler provides private conversation. Up to 16 codes are selectable.

21 Hours Operation

The supplied Li-Ion battery pack, BP-279, provides up to 21 hours of operating time.
The supplied rapid charger BC-213 charges the BP-279 in 2.5 hours.

Group Call

The user programmable CTCSS and DTCS codes can be used for group call. You will only send a call to specified group members using the same tone and same channel.

Other features

  • Low battery alert
  • Time-out-timer function
  • Monitor function
  • Siren alarm function
  • Surveillance function
  • Key lock function
  • Microphone gain level adjustment
  • Power on scan function
  • Three programmable buttons
  • PC programmable
  • VOX capability for hands-free operation
    (Optional headset required)

Supplied Accessories

  • Li-ion battery pack, BP-279
  • Belt clip, MB-133
  • Rapid charger, BC-213
  • AC adapter, BC-123SE/SUK*
Frequency coverage 446.00625–446.19375MHz
(16 channels)
Output power 500mW (ERP)
Audio output power
(at 5% distortion)
Internal speaker 1500 mW typ.
(with 8Ω load)
External speaker 400mW typ.
(with 8Ω load)
Dimensions
(projections not included; W×H×D)
52.2× 186.1× 24.5 mm
(with BP-279)
Weight (approx.) 240g (with BP-279)
Communication range*(approx.) 8km (Wide open space)
Operating temperature –25°C to +55°C
IP rating IP67 (Dust-tight and waterproof protection)
Military standrad: MIL-STD-810-G

PHONE FOR MORE DETAILS
