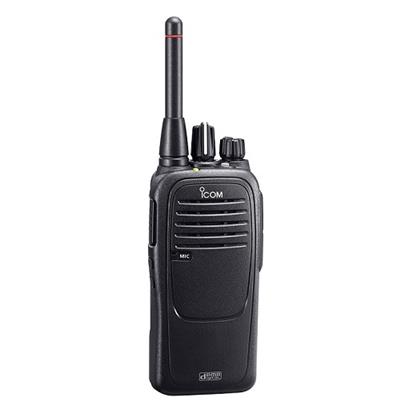

ICOM F29 DR2

<div class="logo_std">
	<img alt="32ch+16ch" height="43" src="https://www.icom.co.jp/world/products/img/logo_std_lf32_16ch.gif" /><img alt="IP67" height="43" src="https://www.icom.co.jp/world/products/img/logo_std_ip67.gif" width="80" /><img alt="MIL-STD810" height="43" src="https://www.icom.co.jp/world/products/img/logo_std_mil.gif" width="88" /><img alt="DIGITAL" height="44" src="https://www.icom.co.jp/world/products/img/logo_std_dpmr.gif" width="81" /></div>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><strong>Waterproof Licence Free Digital Business Radio</strong></span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel">For those organisations that are looking for a simple, waterproof, licence-free two-way digital radio system with a high degree of encryption then the IC-F29DR2 digital business radio is the solution. Not only is this radio incredibly easy to use, it is also waterproof and has long battery life, making it very suitable for a wide range of industry and business sectors.</span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><b>Compact, Digital Licence Free Business Radio </b><br />
	The IC-F29DR2 is available with 32 digital channels featuring 16 new digital channels utilising 6.25 kHz narrow channel spacing as well as 16 analogue channels. Even in urban areas where analogue PMR446 users often experience channel congestion, digital channels offer less interference. The IC-F29DR2 is ideal for organisations and businesses where the workplace is constantly changing such as construction sites and events.</span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><b>Digital and Analogue Dual Mode </b><br />
	The IC-F29DR2 can be used in both digital (32 ch) and analogue (16 ch) mode at the same time and can scan both zones at once. This allows an organisation to operate both digital and analogue radios in their fleets.</span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><b>IP67 Waterproofing and Dust-tight Protection </b><br />
	The IC-F29DR2 can withstand 1m depth of water for 30 minutes. This rugged construction provides dust-tight protection making it suitable for outdoor use or places prone to getting wet. <b>Outstanding Audio Quality </b><br />
	800mW audio output is provided from the large 36mm speaker meaning the IC-F29DR2 can deliver loud and intelligible audio, even in extremely noisy environments.</span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><b>Easy to Use </b><br />
	There are just three main controls&hellip;transmit, volume and channel selector. This simple to use radio is ideal for high turnover environments and shift work that require no fuss communications.</span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><b>VOX: Hands-free Operation</b><br />
	With either optional headset*, HS-94LWP or HS-95LWP, built in VOX function provides convenient hands-free operation. The HS-94LWP/HS-95LWP has a waterproof connector*.<br />
	*HS-94 and HS-95 can also be used with OPC-2004LA. <b>CTCSS, DTCS and Common ID for Group Call </b><br />
	Similar to analogue CTCSS and DTCS codes, the digital Common ID also can be used for a group call. These codes and ID can be programmed to the 16 position rotary selector for instant call capability. <b>Voice Announcement Function </b><br />
	When you rotate the rotary selector, the radio announces selected the channel number and Common ID.</span></p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><b>12 types of Ringtone </b><br />
	The Call-Ring function allows you to call your group members with 12 types of ring tone. When you prearrange any ring tone for an emergency, the ring tone can be used for an emergency alert. <b>Other Features</b><br />
	&bull; Up to 26 hours of long lasting battery life<br />
	&bull; Channel Set Mode<br />
	&bull; Power ON scan<br />
	&bull; Tone scan (analogue)<br />
	&bull; Nuisance delete<br />
	&bull; Answer back call (analogue)<br />
	&bull; LED light indicator<br />
	&bull; Status Call (RX only)<br />
	&bull; PC programmable<br />
	&bull; AMBE+2&trade; dPMR standard vocoder</span></p>
<table class="spec_chart">
	<tbody>
		<tr>
			<th rowspan="2" width="169">
				Usable channels</th>
			<th width="130">
				PMR 446</th>
			<td>
				16 ch</td>
		</tr>
		<tr>
			<th>
				dPMR&trade; 446</th>
			<td>
				32 ch</td>
		</tr>
		<tr>
			<th colspan="2">
				Output Power</th>
			<td>
				500 mW (ERP)</td>
		</tr>
		<tr>
			<th rowspan="2">
				Audio Output Power<br />
				(at 5% distortion)</th>
			<th>
				Internal speaker</th>
			<td>
				800 mW typical (with 12&Omega; load)</td>
		</tr>
		<tr>
			<th>
				External speaker</th>
			<td>
				400 mW typical (with 8&Omega; load)</td>
		</tr>
		<tr>
			<th colspan="2">
				Dimensions</th>
			<td>
				52.2 (W) &times; 186.1 (H) &times; 30.3 (D) mm<br />
				(with BP-280)</td>
		</tr>
		<tr>
			<th colspan="2">
				Weight (approx.)</th>
			<td>
				270 g (with MB-133, BP-280)</td>
		</tr>
		<tr>
			<th colspan="2">
				Communication range*</th>
			<td>
				Approximately 11 km<br />
				(Wide open space)</td>
		</tr>
		<tr>
			<th colspan="2">
				Operating temperature</th>
			<td>
				&ndash;25?C to +55?C</td>
		</tr>
		<tr>
			<th colspan="2">
				IP rating</th>
			<td>
				IP67<br />
				(Dust-tight and waterproof protection)</td>
		</tr>
		<tr>
			<th colspan="2">
				Military standard</th>
			<td>
				MIL-STD-810-G</td>
		</tr>
	</tbody>
</table>
<p>
	&nbsp;</p>
<p>
	<span id="ctl00_ContentPlaceHolder1_DescriptionLabel"><strong>PHONE FOR MORE DETAILS</strong></span></p>

32ch+16chIP67MIL-STD810DIGITAL

Waterproof Licence Free Digital Business Radio

For those organisations that are looking for a simple, waterproof, licence-free two-way digital radio system with a high degree of encryption then the IC-F29DR2 digital business radio is the solution. Not only is this radio incredibly easy to use, it is also waterproof and has long battery life, making it very suitable for a wide range of industry and business sectors.

Compact, Digital Licence Free Business Radio
The IC-F29DR2 is available with 32 digital channels featuring 16 new digital channels utilising 6.25 kHz narrow channel spacing as well as 16 analogue channels. Even in urban areas where analogue PMR446 users often experience channel congestion, digital channels offer less interference. The IC-F29DR2 is ideal for organisations and businesses where the workplace is constantly changing such as construction sites and events.

Digital and Analogue Dual Mode
The IC-F29DR2 can be used in both digital (32 ch) and analogue (16 ch) mode at the same time and can scan both zones at once. This allows an organisation to operate both digital and analogue radios in their fleets.

IP67 Waterproofing and Dust-tight Protection
The IC-F29DR2 can withstand 1m depth of water for 30 minutes. This rugged construction provides dust-tight protection making it suitable for outdoor use or places prone to getting wet. Outstanding Audio Quality
800mW audio output is provided from the large 36mm speaker meaning the IC-F29DR2 can deliver loud and intelligible audio, even in extremely noisy environments.

Easy to Use
There are just three main controls…transmit, volume and channel selector. This simple to use radio is ideal for high turnover environments and shift work that require no fuss communications.

VOX: Hands-free Operation
With either optional headset*, HS-94LWP or HS-95LWP, built in VOX function provides convenient hands-free operation. The HS-94LWP/HS-95LWP has a waterproof connector*.
*HS-94 and HS-95 can also be used with OPC-2004LA. CTCSS, DTCS and Common ID for Group Call
Similar to analogue CTCSS and DTCS codes, the digital Common ID also can be used for a group call. These codes and ID can be programmed to the 16 position rotary selector for instant call capability. Voice Announcement Function
When you rotate the rotary selector, the radio announces selected the channel number and Common ID.

12 types of Ringtone
The Call-Ring function allows you to call your group members with 12 types of ring tone. When you prearrange any ring tone for an emergency, the ring tone can be used for an emergency alert. Other Features
• Up to 26 hours of long lasting battery life
• Channel Set Mode
• Power ON scan
• Tone scan (analogue)
• Nuisance delete
• Answer back call (analogue)
• LED light indicator
• Status Call (RX only)
• PC programmable
• AMBE+2™ dPMR standard vocoder

Usable channels PMR 446 16 ch
dPMR™ 446 32 ch
Output Power 500 mW (ERP)
Audio Output Power
(at 5% distortion)
Internal speaker 800 mW typical (with 12Ω load)
External speaker 400 mW typical (with 8Ω load)
Dimensions 52.2 (W) × 186.1 (H) × 30.3 (D) mm
(with BP-280)
Weight (approx.) 270 g (with MB-133, BP-280)
Communication range* Approximately 11 km
(Wide open space)
Operating temperature –25?C to +55?C
IP rating IP67
(Dust-tight and waterproof protection)
Military standard MIL-STD-810-G



PHONE FOR MORE DETAILS
