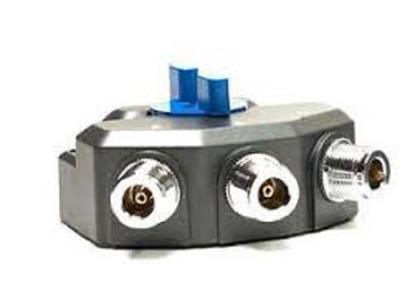

3 WAY N TYPE SWITCH

<p> <b>FREQUENCY RANGE:</b><br /> DC ~ 1.5GHz<br /> <br /> <b>CONNECTOR TYPE:</b><br /> Input Port: N-Female<br /> Output Port: 3x N-Female<br /> <br /> <b>POWER RANGE:</b><br /> DC ~ 30MHz: 1.5KW<br /> 30MHz ~ 200MHz: 1KW<br /> 200MHz ~ 500MHz: 500W<br /> 500MHz ~ 1GHz: 250W<br /> 1GHz ~ 3GHz: 150W<br /> <br /> <b>INSERTION LOSS:</b><br /> DC ~ 500MHz: &le;0.05dB<br /> 500MHz ~ 1GHz: &le;0.10dB<br /> 1GHz ~ 2GHz: &le;0.15dB<br /> 2GHz ~ 3GHz: &le;0.20dB<br /> <br /> <b>OUTPUT PORT ISOLATION:</b><br /> DC ~ 500MHz: 70.0dB<br /> 500MHz ~ 1GHz: 60.0dB<br /> 1GHz ~ 2GHz: 55.0dB<br /> 2GHz ~ 3GHz: 50.0dB<br /> <br /> <b>VSWR:</b><br /> DC ~ 500MHz: &le;1.10<br /> 500MHz ~ 1GHz: &le;1.15<br /> 1GHz ~ 2GHz: &le;1.20<br /> 2GHz ~ 3GHz: &le;1.25</p> <p> PRICE &euro;79</p>

FREQUENCY RANGE:
DC ~ 1.5GHz

CONNECTOR TYPE:
Input Port: N-Female
Output Port: 3x N-Female

POWER RANGE:
DC ~ 30MHz: 1.5KW
30MHz ~ 200MHz: 1KW
200MHz ~ 500MHz: 500W
500MHz ~ 1GHz: 250W
1GHz ~ 3GHz: 150W

INSERTION LOSS:
DC ~ 500MHz: ≤0.05dB
500MHz ~ 1GHz: ≤0.10dB
1GHz ~ 2GHz: ≤0.15dB
2GHz ~ 3GHz: ≤0.20dB

OUTPUT PORT ISOLATION:
DC ~ 500MHz: 70.0dB
500MHz ~ 1GHz: 60.0dB
1GHz ~ 2GHz: 55.0dB
2GHz ~ 3GHz: 50.0dB

VSWR:
DC ~ 500MHz: ≤1.10
500MHz ~ 1GHz: ≤1.15
1GHz ~ 2GHz: ≤1.20
2GHz ~ 3GHz: ≤1.25

PRICE €79
