LONG COMMUNICATIONS

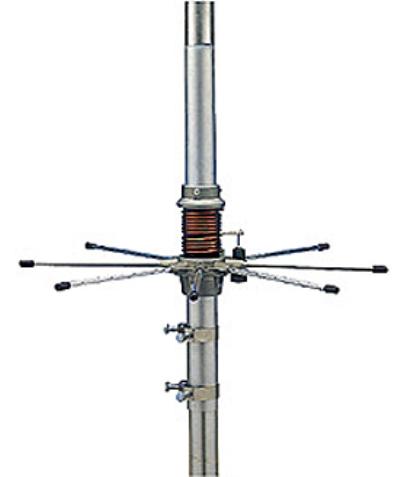

SIRIO 827 CB AERIAL

<p>
	&ndash; Base station antenna, Omnidirectional<br />
	&ndash; High power handling capability<br />
	&ndash; Low radiation angle for excellent DX<br />
	&ndash; Equipped whit excellent multi element ground plane<br />
	&ndash; Made of aluminium alloy 6063 T-832<br />
	&ndash; Protection from static discharges DC-Ground<br />
	&ndash; Optional radials reinforcement, anti-noise NYLON RING</p>
<p>
	&ndash; Type: 5/8&lambda; ground plane<br />
	&ndash; Frequency range: tunable from 26.4 to 28.4 MHz<br />
	&ndash; Gain: 1.5 dBd, 3.65 dBi<br />
	&ndash; Bandwidth @ SWR &le; 2: &ge; 2000 KHz<br />
	&ndash; Max. power:<br />
	&nbsp;&nbsp; 1000 Watts (CW) continuous<br />
	&nbsp;&nbsp;&nbsp; 3000 Watts (CW) short time<br />
	&ndash; Connector: UHF-female</p>
<p>
	&ndash; Materials: Aluminium, Steel, Copper, Nylon<br />
	&ndash; Height (approx.): 6700 mm / 22 feet<br />
	&ndash; Weight (approx.): 6000 gr / 13.2 lb<br />
	&ndash; Mounting mast: &Oslash; 35-39 mm / &Oslash; 1.4-1.5 in</p>
<p>
	&nbsp;</p>
<p>
	PRICE &euro;135</p>

– Base station antenna, Omnidirectional
– High power handling capability
– Low radiation angle for excellent DX
– Equipped whit excellent multi element ground plane
– Made of aluminium alloy 6063 T-832
– Protection from static discharges DC-Ground
– Optional radials reinforcement, anti-noise NYLON RING

– Type: 5/8λ ground plane
– Frequency range: tunable from 26.4 to 28.4 MHz
– Gain: 1.5 dBd, 3.65 dBi
– Bandwidth @ SWR ≤ 2: ≥ 2000 KHz
– Max. power:
   1000 Watts (CW) continuous
    3000 Watts (CW) short time
– Connector: UHF-female

– Materials: Aluminium, Steel, Copper, Nylon
– Height (approx.): 6700 mm / 22 feet
– Weight (approx.): 6000 gr / 13.2 lb
– Mounting mast: Ø 35-39 mm / Ø 1.4-1.5 in



PRICE €135
